oracle.ohs.plugin.nodemanager.OhsProcessManagementPlugin$ProcessImpl buildIoException SEVERE: Failed to start the server ohs1 In New Installation of FMW 12.2.1.3 on Windows Server

Problem Summery:

When we are trying start OHS instance it's failing with an error.

Error:

29 Mar, 2018 10:30:22 PM IST> <INFO> <Server Implementation Class: weblogic.nodemanager.server.NMServer$ClassicServer.>

<29 Mar, 2018 10:30:23 PM IST> <INFO> <Secure socket listener started on port 5556>

<29 Mar, 2018 10:30:54 PM IST> <INFO> <base_domain> <ohs1> <Creating directory "F:\OHS\user_projects\domains\base_domain\system_components\OHS\ohs1\data\nodemanager">

Mar 29, 2018 10:30:54 PM oracle.ohs.plugin.nodemanager.OhsProcessManagementPlugin$ProcessImpl start

INFO: Starting server ohs1

Mar 29, 2018 10:30:55 PM oracle.ohs.plugin.nodemanager.OhsRunCommand execute

INFO: Running F:\OHS\ohs\bin\launch.exe F:\OHS\ohs\bin\httpd.exe -DOHS_MPM_WINNT -d F:/OHS/user_projects/domains/base_domain/config/fmwconfig/components/OHS/instances/ohs1 -f F:\OHS\user_projects\doma

ins\base_domain\config\fmwconfig\components\OHS\instances\ohs1\httpd.conf

Mar 29, 2018 10:30:56 PM oracle.ohs.plugin.nodemanager.OhsRunCommand execute

SEVERE: F:\OHS\ohs\bin\launch.exe F:\OHS\ohs\bin\httpd.exe -DOHS_MPM_WINNT -d F:/OHS/user_projects/domains/base_domain/config/fmwconfig/components/OHS/instances/ohs1 -f F:\OHS\user_projects\domains\ba

se_domain\config\fmwconfig\components\OHS\instances\ohs1\httpd.conf: exit status = -1073741515

Mar 29, 2018 10:30:56 PM oracle.ohs.plugin.nodemanager.OhsProcessHandler buildProcess

INFO: Check the instance log file for more information: F:\OHS\user_projects\domains\base_domain\servers\ohs1\logs\ohs1.log

Mar 29, 2018 10:30:56 PM oracle.ohs.plugin.nodemanager.OhsProcessManagementPlugin$ProcessImpl buildIoException

SEVERE: Failed to start the server ohs1

<29 Mar, 2018 10:30:56 PM IST> <WARNING> <Server start command for OHS server 'ohs1' failed due to: [Failed to start the server ohs1

Check log file F:\OHS\user_projects\domains\base_domain\system_components\OHS\ohs_nm.log]. Please check Node Manager log and/or server 'ohs1' log for detailed information.

Solution:

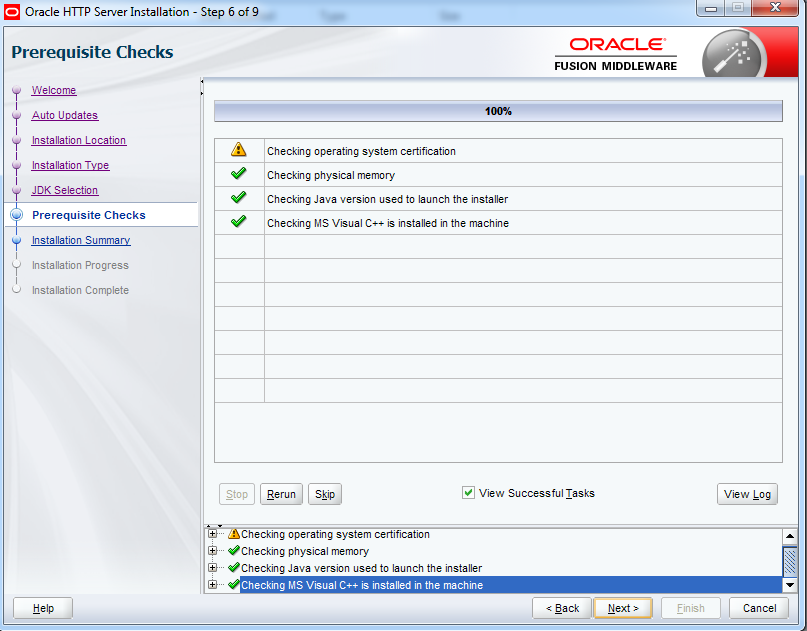

Note: I Installed Microsoft Visual C++ 2015 Redistributable Package.So when iam installing ohs Visual C++ certification matrix not fulilfied.Please ignore the operating system certification matrix.

After i installed Microsoft Visual C++ 2010 & Microsoft Visual C++ 2012 after visual c++ certification matrix fuillfilled.So finally iam able to start ohs by folled below steps.

In order to start 12.2.1.3 OHS, msvcr100.dll and msvcr110.dll both are required.
1) Install Microsoft Visual C++ 2010 Redistributable along with Microsoft Visual C++ 2012 Redistributable.
2) Go to C:\Windows\System32 directory and confirm if "msvcr100.dll" and "msvcr110.dll" are present.
3) Now try to start OHS.
